Author Topic: Wiring troubles. Help appreciated.  (Read 21125 times)

Davidbross

  • Engineer
  • ***
  • Posts: 63
Wiring troubles. Help appreciated.
« on: March 28, 2021, 09:45:31 AM »
I’m trying to wire lights for the first time.  It’s not working.

I’m using a lm3s. I don’t think I’m getting power out of the board.  I have tried both a volt meter and an led to see if I’m getting power.

Here’s what I did to wire and test.   One wire to the 5+ which is the outermost post on one end of the board.  Other wire to white wire on harness on other end of the board.  Find engine on the remote. Configure front light to be white wire and turn on.   Should be power. Not getting any.   Tried volt meter and led. Tried led with and without resistor.  Lastly checked led with another power source.  Led works fine.

William Brillinger

  • Dispatcher (Admin)
  • Conductor
  • *****
  • Posts: 1342
    • Precision Design Co.
Re: Wiring troubles. Help appreciated.
« Reply #1 on: March 28, 2021, 01:50:41 PM »
I believe you are using an LM-3S-G not an LM-3S, they are very different.
- Bill Brillinger, RPUG Admin

Modeling the BNML in HO Scale, owner of Precision Design Co., and RailPro Dealer.


Davidbross

  • Engineer
  • ***
  • Posts: 63
Re: Wiring troubles. Help appreciated.
« Reply #2 on: March 28, 2021, 02:12:23 PM »
Yes. It is the one for g/o scale.

faithie999

  • Conductor
  • ****
  • Posts: 163
Re: Wiring troubles. Help appreciated.
« Reply #3 on: March 28, 2021, 02:51:47 PM »
aside from lights, does the loco run properly?

Ken


Davidbross

  • Engineer
  • ***
  • Posts: 63
Re: Wiring troubles. Help appreciated.
« Reply #4 on: March 28, 2021, 03:23:05 PM »
Yes.  Sounds. Motor control are perfect.

William Brillinger

  • Dispatcher (Admin)
  • Conductor
  • *****
  • Posts: 1342
    • Precision Design Co.
Re: Wiring troubles. Help appreciated.
« Reply #5 on: March 28, 2021, 03:27:41 PM »
how have you configured the lighting buttons on the HC?
- Bill Brillinger, RPUG Admin

Modeling the BNML in HO Scale, owner of Precision Design Co., and RailPro Dealer.


nodcc4me

  • Conductor
  • ****
  • Posts: 688
  • RailPro Fan
Re: Wiring troubles. Help appreciated.
« Reply #6 on: March 28, 2021, 03:53:45 PM »

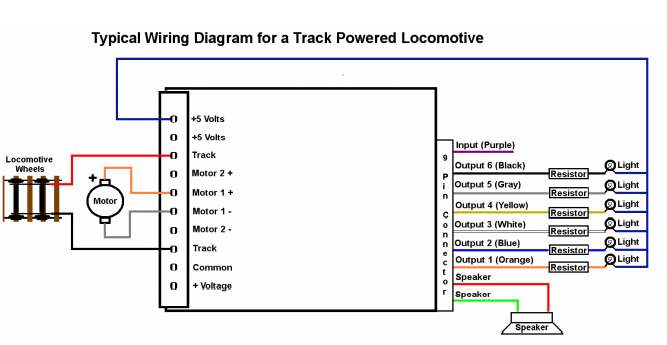

Something doesn't sound right. Assuming you are using track power and not battery, when you refer to the "board" do you mean the LM or the manufacturer's board in the locomotive? If you mean the LM, then the position of the white wire is not on the end of the board, but is in the middle according to the wiring diagram. That would indicate that you possibly have the wrong 9-pin harness. Also, if there is no manufacturer's board then the LEDs must have a resistor.

Al

Run your train, not your brain. Get RailPro. It's a no-brainer.

Davidbross

  • Engineer
  • ***
  • Posts: 63
Re: Wiring troubles. Help appreciated.
« Reply #7 on: March 28, 2021, 04:38:14 PM »
Battery power. When I say end of board I just mean it’s on the end left to right.  It’s definitely in the middle. I do have the right harness. It can with the board.  The only board I’m using is the lm3sG.  All other boards were pulled out of the loco.

Davidbross

  • Engineer
  • ***
  • Posts: 63
Re: Wiring troubles. Help appreciated.
« Reply #8 on: March 28, 2021, 04:39:58 PM »
Bill. I configured the button as a simple on off.

faithie999

  • Conductor
  • ****
  • Posts: 163
Re: Wiring troubles. Help appreciated.
« Reply #9 on: March 29, 2021, 05:31:04 AM »
the other part of Tim's question was are you using an LED or an incandescent bulb?  if an LED, are you using a resistor in series with it?  if not, it probably blew immediately when you first turned it on.  for a white LED you need a 100 ohm resistor.  I usually put the resistor on the negative leg of the LED.

Davidbross

  • Engineer
  • ***
  • Posts: 63
Re: Wiring troubles. Help appreciated.
« Reply #10 on: March 29, 2021, 06:52:52 AM »
If you read the original post you will see it’s an led. You will also see I tested the led again after trying to get it to light with the board. The led still works so not blown.  Again the problem is no power from the board to the lighting wires.  I’ve tried every wire.

William Brillinger

  • Dispatcher (Admin)
  • Conductor
  • *****
  • Posts: 1342
    • Precision Design Co.
Re: Wiring troubles. Help appreciated.
« Reply #11 on: March 29, 2021, 07:28:07 AM »
Can you give us the full detail on how you configured the button on the HC?

What wire, what effect, what button image... everything?
- Bill Brillinger, RPUG Admin

Modeling the BNML in HO Scale, owner of Precision Design Co., and RailPro Dealer.


faithie999

  • Conductor
  • ****
  • Posts: 163
Re: Wiring troubles. Help appreciated.
« Reply #12 on: March 29, 2021, 07:29:04 AM »
sorry for missing those details.

are the other 5 outputs also dead?

in any case, I'm sure Ring will repair or replace the module.  I had a very good experience with Ring with a similar issue (not with the -G model, though).

Davidbross

  • Engineer
  • ***
  • Posts: 63
Re: Wiring troubles. Help appreciated.
« Reply #13 on: March 29, 2021, 08:28:26 AM »
Let's hope it's not the module.  I've spent many hours working on loading sounds etc.

nodcc4me

  • Conductor
  • ****
  • Posts: 688
  • RailPro Fan
Re: Wiring troubles. Help appreciated.
« Reply #14 on: March 29, 2021, 09:25:04 AM »
Check the program revision of the module. Should be 2.30. Make sure you are using headlight ON-Off Rev 2.
Al

Run your train, not your brain. Get RailPro. It's a no-brainer.
