So - to make space for the LM-3S receivers I've usually taken a hacksaw, or port-a-band saw to those white-metal weights to gain the space needed. Not a fun or easy process. Fortunately I've got a friend with a CNC mill.

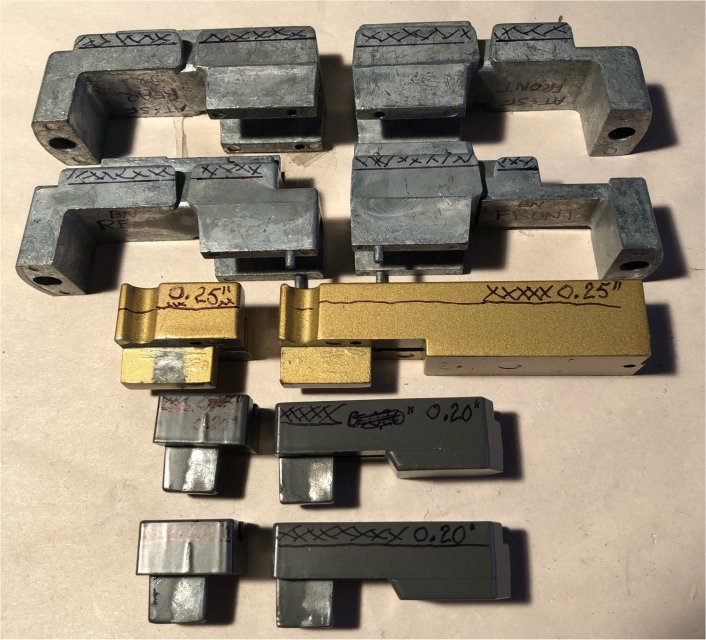

BEFORE: Top-to-Bottom: two red-box Atlas U30C sets of weights, an Athearn SD45T-2 set of weights and two Athearn SD40T-2 sets of weights. You can see Sharpie marks showing what I wanted taken off.
AFTER

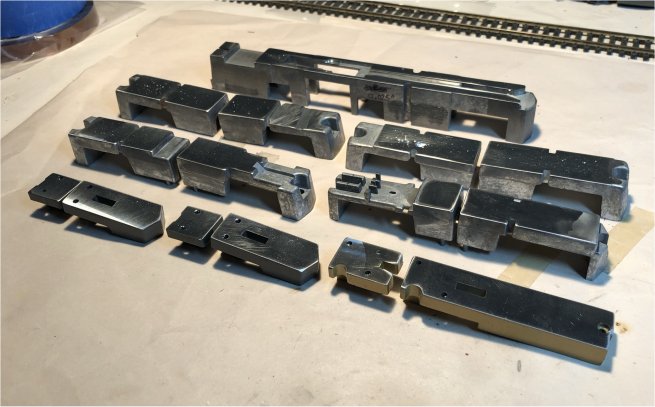

I disassembled about eight locos that will eventually get LM-3S receivers installed. Here's a group photo of them after being milled; the long one in the back is a Proto 2000 SD60:

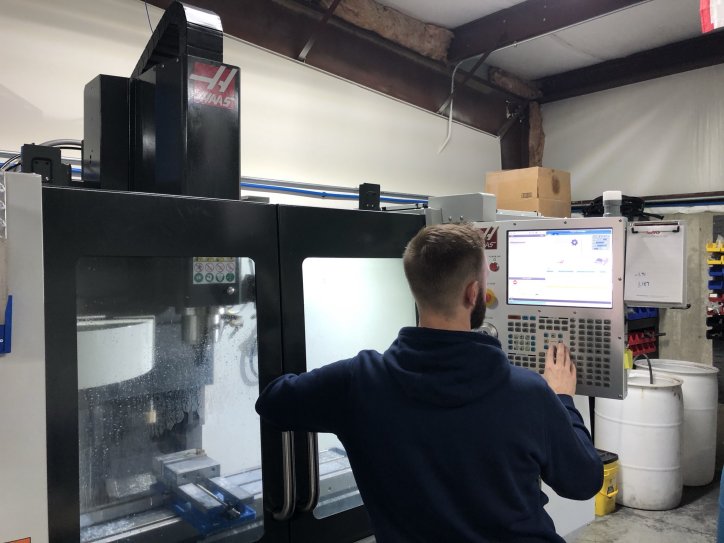

Included here is a shot of the small, gold-colored, front weight piece from an Athearn Cotton Belt Bicentennial SD40T-2 loco set up in the mill. If you look closely in the lower left quadrant you can see the weight chucked up on the right side of the blue work-piece vise/clamp.
I may never have to use a hacksaw again!
