Post by: Espeelark on October 30, 2025, 05:01:23 PM
Kato SD40's are noted for their smooth operation and this one is no different.

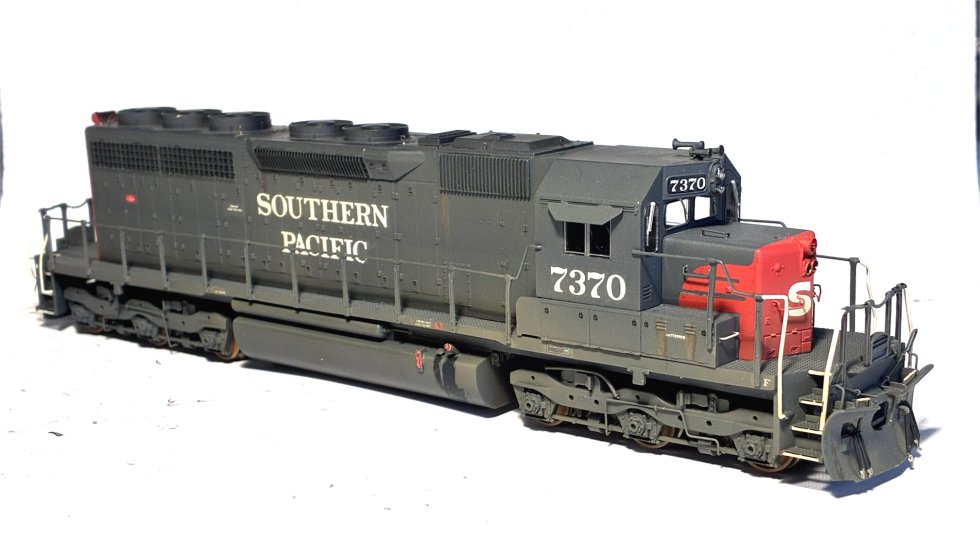

So here's an SD40 that I super-detailed and painted quite a handful of years ago:

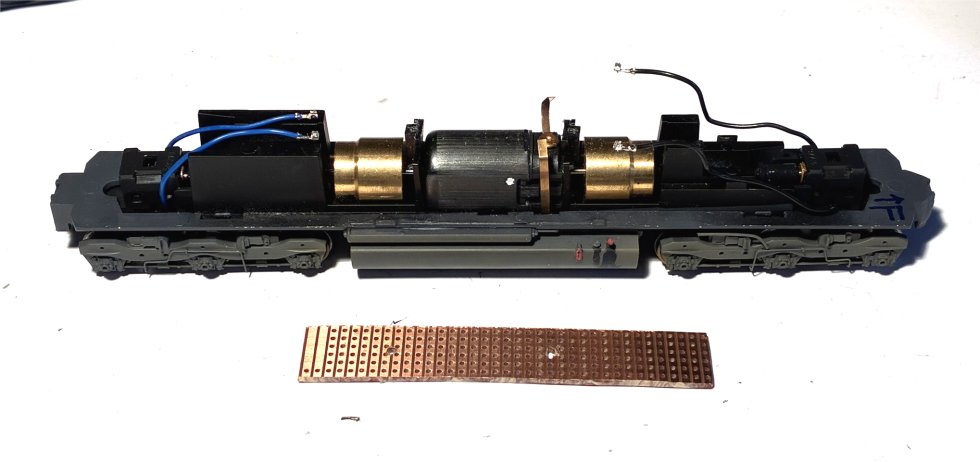

I wish I took a picture of the "under the hood" factory arrangement before I gutted it, but, I didn't. Here's the bare chassis, motor and driveline after everything got stripped. Note the PC board in the foreground.

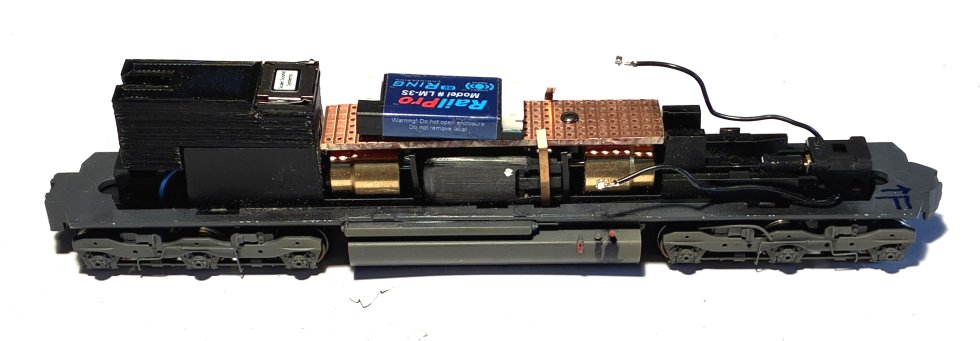

I reduced the height of the two factory motor brackets on either side of the motor and use them to mount the PCB board which will serve as my base for the LM-3S and also allow me to connect wires (like the common blue) together. Also, I'm using a Scale Sound Systems speaker & enclosure which installs at teh back end of the chassis. I also placed an LM-3S module in place to get an idea of where it might go - as can be seen in this photo.
Watch this space for updates!
Post by: LVRR1856 on October 31, 2025, 08:55:14 PM
I'm working on an Atlas C424 and a P2k GP18. Almost ready.
