Post by: BruceRogers on February 11, 2017, 10:19:39 AM
Just to see if we could get an LM-3S module into a Bachmann Climax. This belongs to a friend who wanted it converted to RailPro.
The 21 pin board and speaker were removed. Each wire was unsoldered from the 21 pin printed circuit board and soldered to the 9 pin JST plug one at a time.

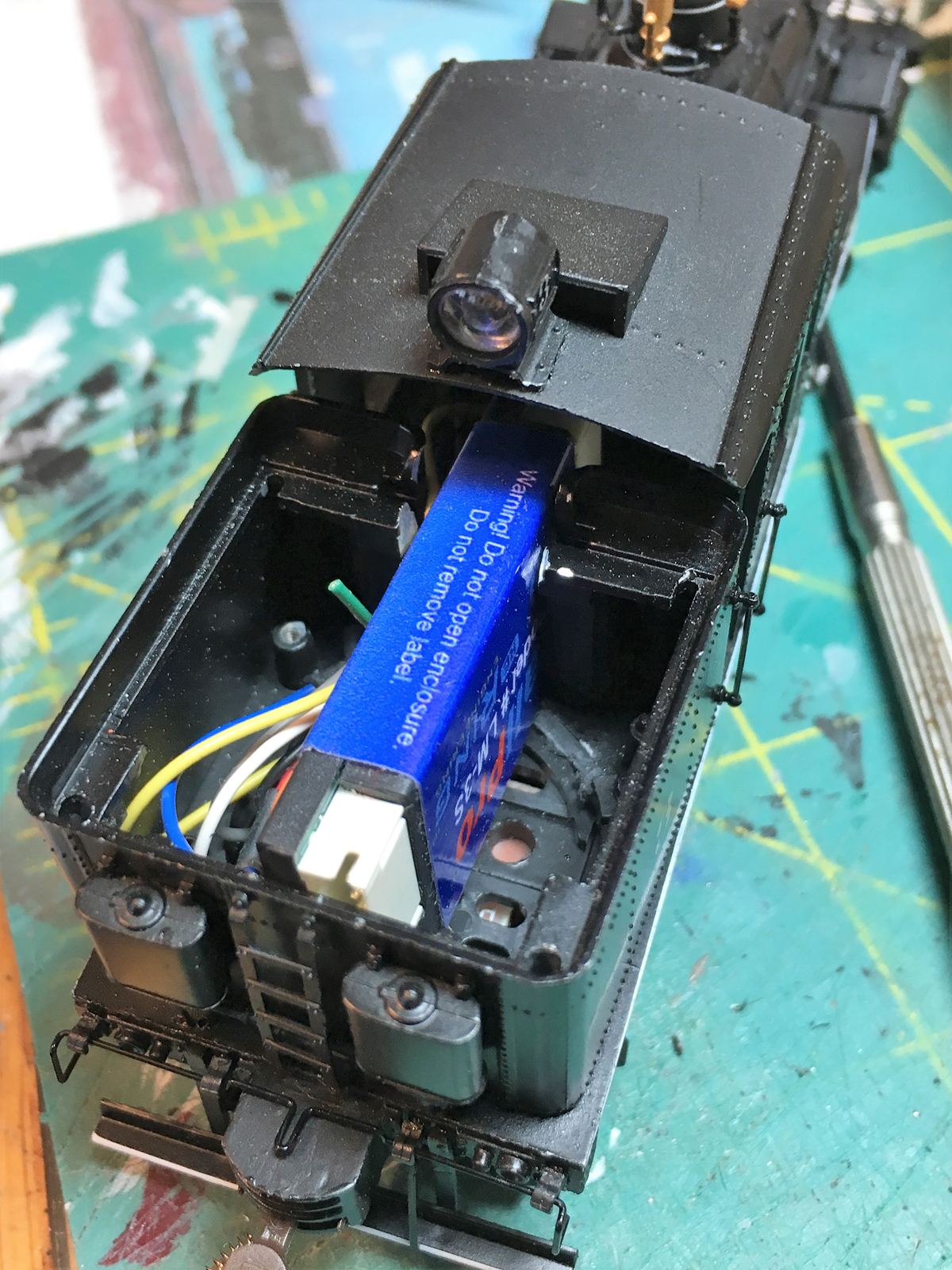

The coal bunker needed a brace in the center removed to allow the module to sit upright. I used an iPhone 4S speaker that was cut down to put in the bunker. The 6 pin plug cannot be used due to not enough space. The speaker wires were soldered directly to the necessary pins.

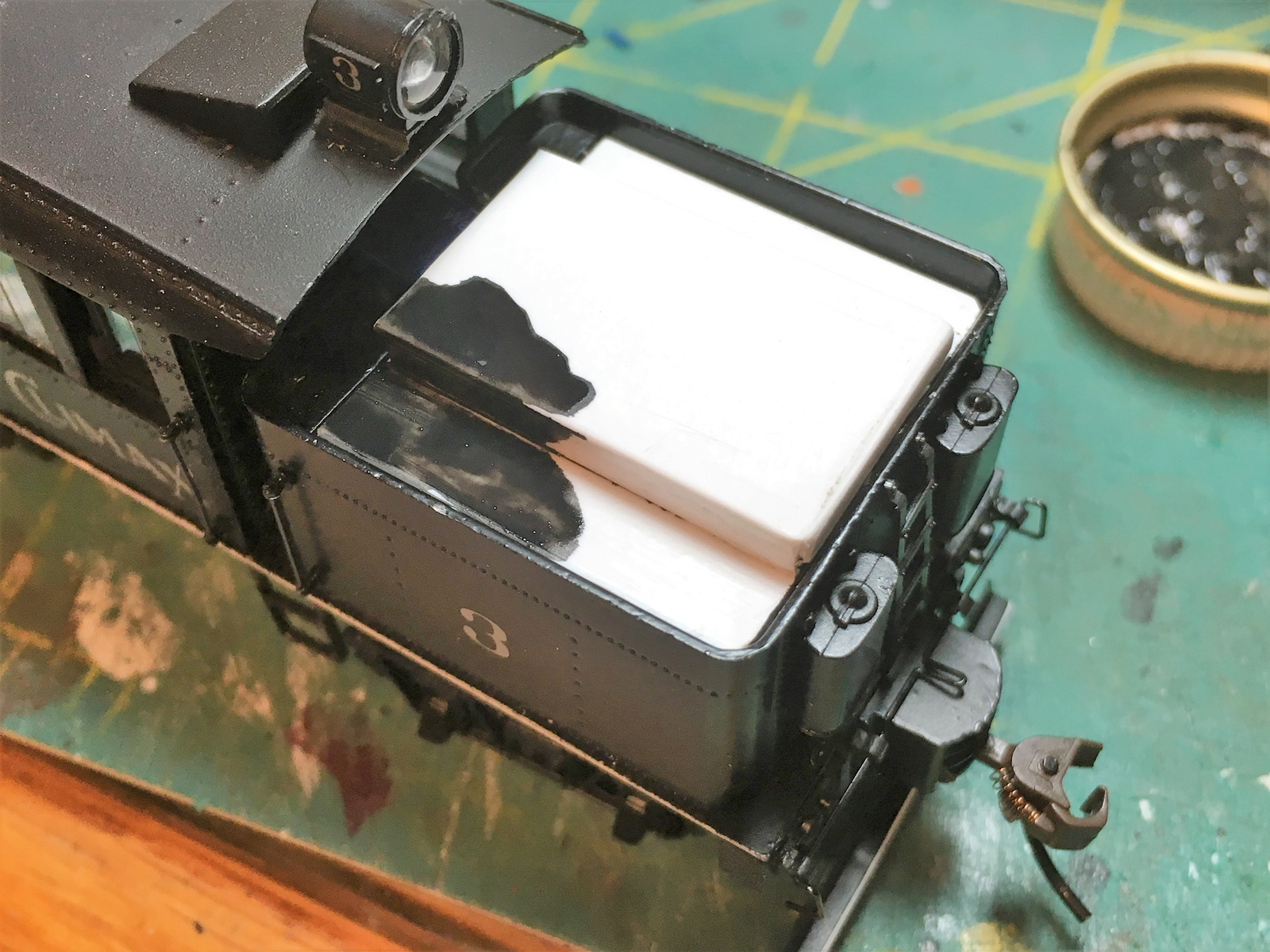

I made a styrene cover to temporarily cover the module since the coal load will no longer fit. With some hatches it would make a good oil tank, but the owner is going to use wood for fuel.
Post by: William Brillinger on February 11, 2017, 10:46:57 AM
You'll notice I tinkered with your pictures to make them fit better (width).
You can click the modify link to see what I did.
Cheers!
- Bill
Post by: nodcc4me on February 11, 2017, 11:26:54 AM
Post by: BruceRogers on February 11, 2017, 11:41:08 AM
Post by: William Brillinger on February 11, 2017, 11:45:38 AM
When you use the insert attachment option, adding the value "width=800 " after the id number will show a smaller image.
Code: [Select]
attachment id=3 width=800 msg=2483
Post by: BruceRogers on February 11, 2017, 11:48:11 AM
