Creating Space
« on: April 26, 2021, 11:10:51 AM »
So - to make space for the LM-3S receivers I've usually taken a hacksaw, or port-a-band saw to those white-metal weights to gain the space needed. Not a fun or easy process. Fortunately I've got a friend with a CNC mill.

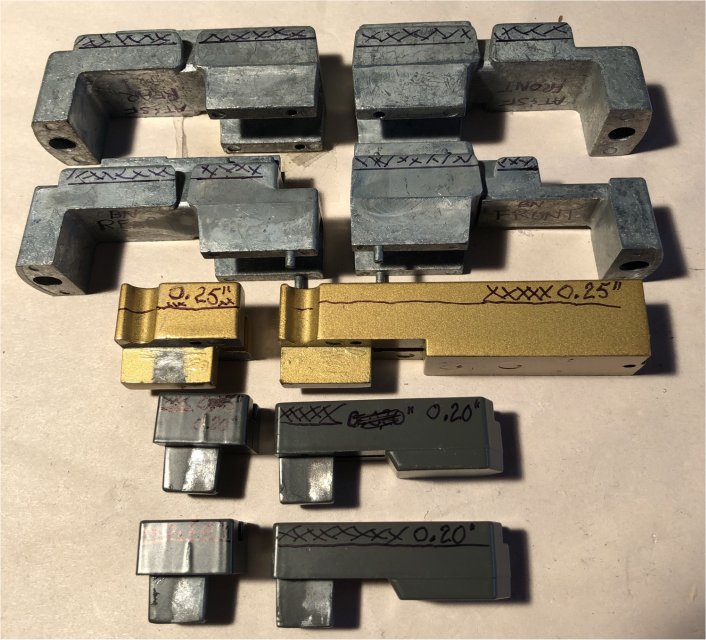

BEFORE: Top-to-Bottom: two red-box Atlas U30C sets of weights, an Athearn SD45T-2 set of weights and two Athearn SD40T-2 sets of weights. You can see Sharpie marks showing what I wanted taken off.
Weights - Before.jpg

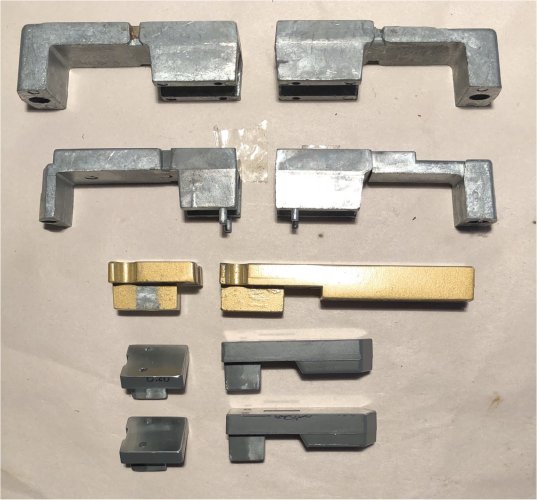

Weights - After.jpg

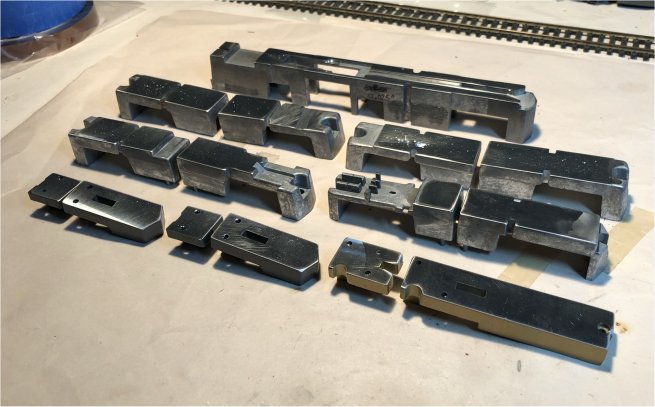

I disassembled about eight locos that will eventually get LM-3S receivers installed. Here's a group photo of them after being milled; the long one in the back is a Proto 2000 SD60:
Weights - Group.jpg

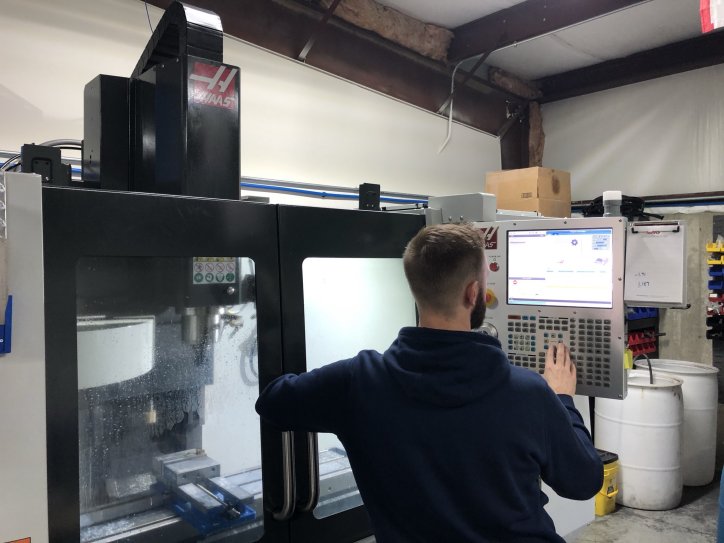

Included here is a shot of the small, gold-colored, front weight piece from an Athearn Cotton Belt Bicentennial SD40T-2 loco set up in the mill. If you look closely in the lower left quadrant you can see the weight chucked up on the right side of the blue work-piece vise/clamp.
Weights - CNC.jpg

I may never have to use a hacksaw again!
« Last Edit: April 26, 2021, 03:13:20 PM by Espeelark »
Espeelark (Paul Mac)
Modeling the SP in Ohio
"Bad is never good until worse happens...."


  • Fireman
  • **
  • Posts: 11
Re: Creating Space
« Reply #1 on: April 26, 2021, 02:37:33 PM »
Nice!  If only we could send some frames to be swapped out for ones you've already modified!



  • Conductor
  • ****
  • Posts: 669
  • RailPro Fan
Re: Creating Space
« Reply #2 on: April 26, 2021, 03:03:54 PM »
That is quite a machine. You are indeed lucky to have this friend.
