Author Topic: Power Supply Question  (Read 3298 times)

nodcc4me

  • Conductor
  • ****
  • Posts: 564
  • RailPro Fan
    • View Profile
Power Supply Question
« on: January 30, 2017, 10:08:42 AM »
I am looking for a regulated power supply for my short test track, which is away from my layout, and don't want to spend the money for a PWR56. Currently, i am using an old DC power pack that bounces the voltage causing the prime movers to cut out. I would need to run 2 locomotives together at most. Would either of these two work?

https://www.amazon.com/PHC-APS-415-Variable-Supply-3-15vdc/dp/B00RKNQ2K2/ref=pd_lpo_23_tr_t_3?_encoding=UTF8&psc=1&refRID=946RCGQE4CPMG31ZRX5J

http://www.ebay.com/itm/30V-5A-US-110V-DC-Power-Supply-Regulated-Adjustable-Dual-LED-Digital-Lab-Grade-/201724897973?hash=item2ef7bdaab5:g:YDIAAOSwo4pYb2ed
Al

Run your train, not your brain. Get RailPro. It's a no-brainer.


nodcc4me

  • Conductor
  • ****
  • Posts: 564
  • RailPro Fan
    • View Profile
Re: Power Supply Question
« Reply #2 on: January 30, 2017, 01:55:19 PM »
I like the wall wart idea Alan. Are they regulated? I don't want to have the same issues I'm having now.
Al

Run your train, not your brain. Get RailPro. It's a no-brainer.

Alan

  • Conductor
  • ****
  • Posts: 942
    • View Profile
    • LK&O Railroad
Re: Power Supply Question
« Reply #3 on: January 30, 2017, 02:14:08 PM »
Yes, they are regulated. You probably already have a 12v wall wart somewhere in your house you could use.
Alan

LK&O Railroad website

When I was a kid... no wait, I still do that. HO, 28x32, double deck, 1969, RailPro

nodcc4me

  • Conductor
  • ****
  • Posts: 564
  • RailPro Fan
    • View Profile
Re: Power Supply Question
« Reply #4 on: January 30, 2017, 02:20:21 PM »
That's true. I'll take a look around. If not, I know where to get one. Thanks Alan!  :)
Al

Run your train, not your brain. Get RailPro. It's a no-brainer.

Alan

  • Conductor
  • ****
  • Posts: 942
    • View Profile
    • LK&O Railroad
Re: Power Supply Question
« Reply #5 on: February 02, 2017, 11:01:47 AM »
This nice little article arrived in my Inbox today. Very pertinent to your test track power selection. Have a read: https://www.electronicspoint.com/resources/power-supplies-common-terms-and-limitations.55/?utm_source=newsletter&utm_medium=email&utm_campaign=February
Alan

LK&O Railroad website

When I was a kid... no wait, I still do that. HO, 28x32, double deck, 1969, RailPro

nodcc4me

  • Conductor
  • ****
  • Posts: 564
  • RailPro Fan
    • View Profile
Re: Power Supply Question
« Reply #6 on: February 02, 2017, 12:01:12 PM »
Interesting read. I hooked my meter onto the test track. The old MRC Trainpack was initially putting out 13v. I placed a locomotive on the track and the voltage remained the same until I turned on the prime mover. Then it dropped to 10-11v. The HC Sim was showing a low voltage error, as it should. I'm thinking the regulated wall wart won't drop like that and will solve the problem.

The Trainpack has a speed control lever that has no effect on the track voltage, So it must change the current. Yet it has no effect on the RP equipped loco, which is being controlled by the LM module. Does that sound about right?
Al

Run your train, not your brain. Get RailPro. It's a no-brainer.

Alan

  • Conductor
  • ****
  • Posts: 942
    • View Profile
    • LK&O Railroad
Re: Power Supply Question
« Reply #7 on: February 02, 2017, 12:53:53 PM »
Interesting read. I hooked my meter onto the test track. The old MRC Trainpack was initially putting out 13v. I placed a locomotive on the track and the voltage remained the same until I turned on the prime mover. Then it dropped to 10-11v. The HC Sim was showing a low voltage error, as it should. I'm thinking the regulated wall wart won't drop like that and will solve the problem.

The Trainpack has a speed control lever that has no effect on the track voltage, So it must change the current. Yet it has no effect on the RP equipped loco, which is being controlled by the LM module. Does that sound about right?

Other than a few Tyco train set power packs, the only MRC power pack I have experience with is the old Model 500 of which I had several. My response is based on that experience.

Sounds right... to a point. An unregulated and unloaded 12v rated power supply will measure 13v or more often 13.8v. As long as a minimum voltage is maintained (somewhere around 9v), the LM functions. Unlike your Trainpack, a LM uses pulse width modulation to control speed. Pulse frequency, not voltage (directly) dictates speed. The LM is compensating, so to speak, for the position of the Trainpack lever. I would expect to see the voltage fall below the minimum LM requirement when the speed lever is moved to zero or near zero. Old school train power packs had rheostats with not much resistance difference between full on and almost full off. This was because of the required minimum starting voltage to get trains moving. The rheostat wiper would be completely off the winding when in the full off position. It's possible that even at the lowest speed lever setting there is still not sufficient resistance in the rheostat to prevent the LM from falling below its minimum working voltage.

Fun fact: My old 500's had impulse power. The switch simply changed the diode arrangement from bridge rectifier configuration to single diode half wave configuration. That baby really buzzed (at 60Hz to be exact) when the switch was set to impulse. As a kid I used to imagine all the buzzing going on were my prime movers working hard. Ah, simpler times.  ;D

A regulated wall wart will have some minor voltage fluctuation with a change in loading. They are cheap consumer devices, not precision instruments. However, the change will be minimal compared to your unregulated Trainpack and should have no measurable effect on loco operation. The key advantage for you is wall warts are available in 15v which is picture perfect for RP.
Alan

LK&O Railroad website

When I was a kid... no wait, I still do that. HO, 28x32, double deck, 1969, RailPro

Alan

  • Conductor
  • ****
  • Posts: 942
    • View Profile
    • LK&O Railroad
Re: Power Supply Question
« Reply #8 on: February 02, 2017, 12:57:59 PM »
Found a picture online. Conjured up great memories for me from a long time ago. Reminded me again why I play with trains today.

 [ You are not allowed to view attachments ]
Alan

LK&O Railroad website

When I was a kid... no wait, I still do that. HO, 28x32, double deck, 1969, RailPro

Alan

  • Conductor
  • ****
  • Posts: 942
    • View Profile
    • LK&O Railroad
Re: Power Supply Question
« Reply #9 on: February 02, 2017, 01:51:36 PM »
Sorry, forgot to address one of your comments...

Quote
The Trainpack has a speed control lever that has no effect on the track voltage, So it must change the current.

Your Trainpack is an unregulated power supply. It is a passive device. The voltage and current change (inversely) depending upon load and rheostat position. The article is about regulated power supplies only. The article applies to wall warts.

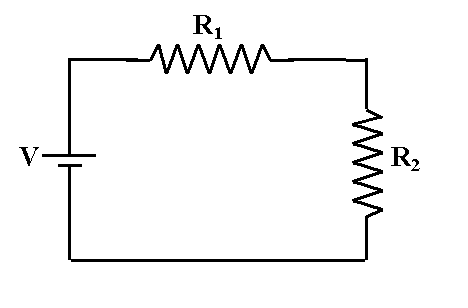

Electrically, this is your Trainpack and a locomotive:

 [ You are not allowed to view attachments ]

With R1 being the speed lever and R2 the locomotive. R1 changes with lever position, R2 changes with loco speed and load. Ohm's law states the circuit current is determined by R1 + R2. It also states voltage drop across R2 = V - R1 drop. Since both R1 and R2 continually change as you operate the train there will also be changes in voltage across and current through R2 - your locomotive.

A regulated power supply will either: A) maintain a constant voltage regardless of R2 value; or B) limit the total circuit current to the value produced by R2. Voltage regulation is important to RP. Current regulation is not needed in the power supply as the LM already does this (loco stall setting on your HC). It is a misnomer of sorts to say current regulation. It is more accurate to say current limiting. Any device will only pass as much current as its internal R determines. Current regulators are for use with devices that have low R but not the ability to handle the current (heat) that such a low R would produce. LEDs are prime examples. Model train motors are bulky sturdy devices with the ability to dissipate a lot of heat. They only have a problem dissipating heat from excessive current when the R falls to very low. And even then it takes time for the heat to build up. The HC stall setting, AKA power supply current regulation/limiting, keeps the current below the critical point for the loco motor during low R instances (stalled or extreme loading).

Does that help?
Alan

LK&O Railroad website

When I was a kid... no wait, I still do that. HO, 28x32, double deck, 1969, RailPro

nodcc4me

  • Conductor
  • ****
  • Posts: 564
  • RailPro Fan
    • View Profile
Re: Power Supply Question
« Reply #10 on: February 02, 2017, 02:51:02 PM »
Yes, very helpful Alan. Thank you. This is a picture of the N-scale Trainpack, which is identical looking to my HO version:
 [ You are not allowed to view attachments ]

You are correct that the voltage does drop off near zero, but in my case it varies both high and low during normal operation making the prime mover start and stop annoyingly.
« Last Edit: February 02, 2017, 02:54:40 PM by nodcc4me »
Al

Run your train, not your brain. Get RailPro. It's a no-brainer.

Alan

  • Conductor
  • ****
  • Posts: 942
    • View Profile
    • LK&O Railroad
Re: Power Supply Question
« Reply #11 on: February 02, 2017, 04:23:05 PM »
And that is exactly why a regulated supply is so important and why power pack unregulated power supplies are all but useless in today's world of electronics. They work great with light bulbs! Use it to light up buildings on your layout.  :P
Alan

LK&O Railroad website

When I was a kid... no wait, I still do that. HO, 28x32, double deck, 1969, RailPro

Jamesy

  • Brakeman
  • *
  • Posts: 1
    • View Profile
Re: Power Supply Question
« Reply #12 on: February 10, 2017, 12:51:23 AM »
Yes, very helpful Alan. Thank you. This is a picture of the N-scale Trainpack, which is identical looking to my HO version:
 [ You are not allowed to view attachments ]

You are correct that the Hydromax X20 now on https://www.the5x5project.com/hydromax-x20-review-results voltage does drop off near zero, but in my case it varies both high and low during normal operation making the prime mover start and stop annoyingly.

That's nice, I like the lever on the side.
« Last Edit: September 02, 2017, 04:15:03 AM by Jamesy »

nodcc4me

  • Conductor
  • ****
  • Posts: 564
  • RailPro Fan
    • View Profile
Re: Power Supply Question
« Reply #13 on: February 21, 2017, 05:24:29 PM »
As a follow-up, I ordered the wall wart. Problem solved, and it doesn't buzz like the old MRC.  :D
Thanks again Alan!
Al

Run your train, not your brain. Get RailPro. It's a no-brainer.

Alan

  • Conductor
  • ****
  • Posts: 942
    • View Profile
    • LK&O Railroad
Re: Power Supply Question
« Reply #14 on: February 24, 2017, 02:05:39 PM »
Quote
As a follow-up, I ordered the wall wart. Problem solved, and it doesn't buzz like the old MRC.  :D

Happy to hear problem solved.
Alan

LK&O Railroad website

When I was a kid... no wait, I still do that. HO, 28x32, double deck, 1969, RailPro
