Author Topic: Atlas Classic C424 (Canadian Version)  (Read 531 times)

CPRail

  • Conductor
  • ****
  • Posts: 152
Atlas Classic C424 (Canadian Version)
« on: February 08, 2020, 07:56:35 PM »
Hi Group,

My father started this install before he left for winter on the West Coast, and it was getting in the way, so I opted to finish it. Good thing I did as he must've had his crazy setting turned up and wasn't paying attention to the install. Wires all over the place and waay too long.

I redid it for him and did my best to reduce the wire mess. LM-3S, Scale Sound Systems speaker, and a TCS KA-1 Keep Alive. He opted not to include the headlight bulbs for this install, but there is still space for it. In order to use the SSS speaker you have to toss the board and hard wire it in.

Shown are 2 before shots and 3 after shots.

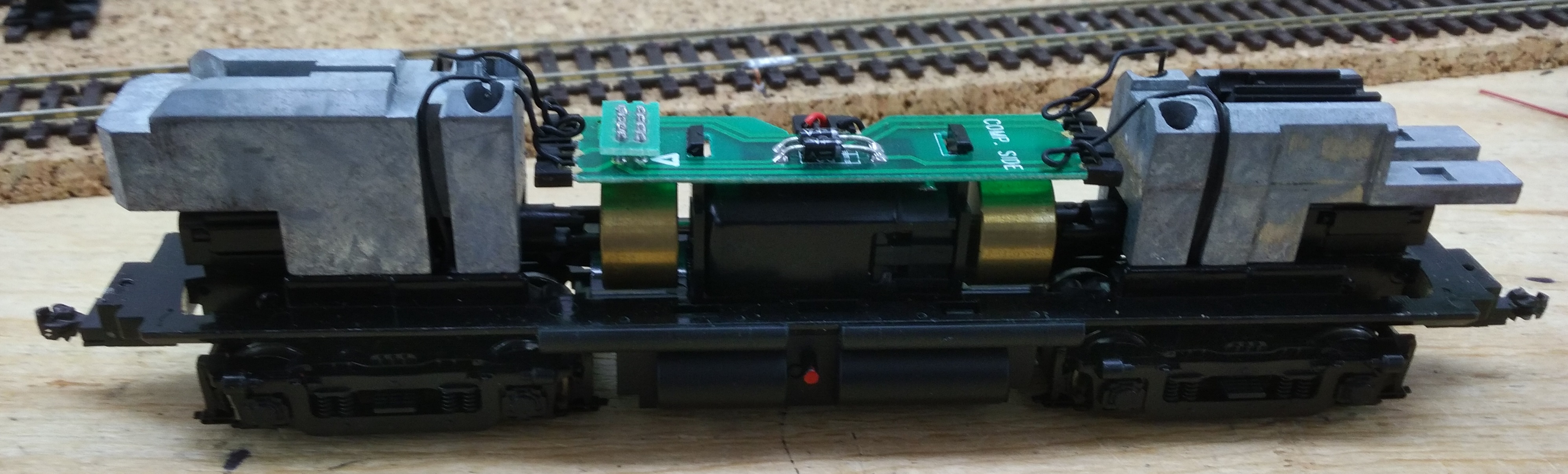

C424 Before.1.jpg

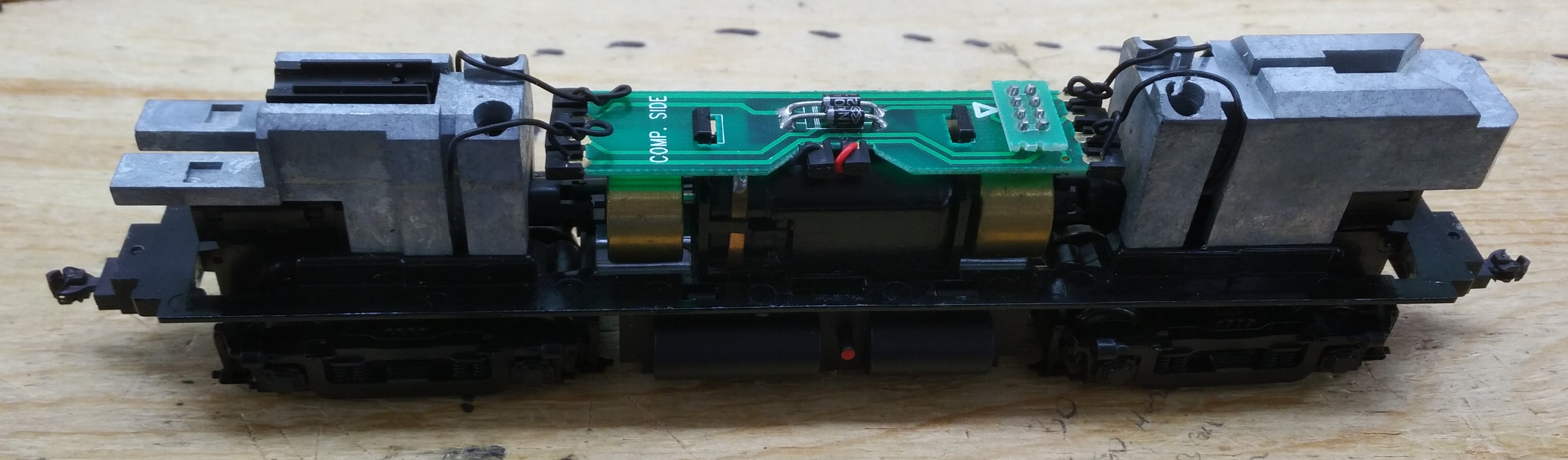

C424 Before.2.jpg

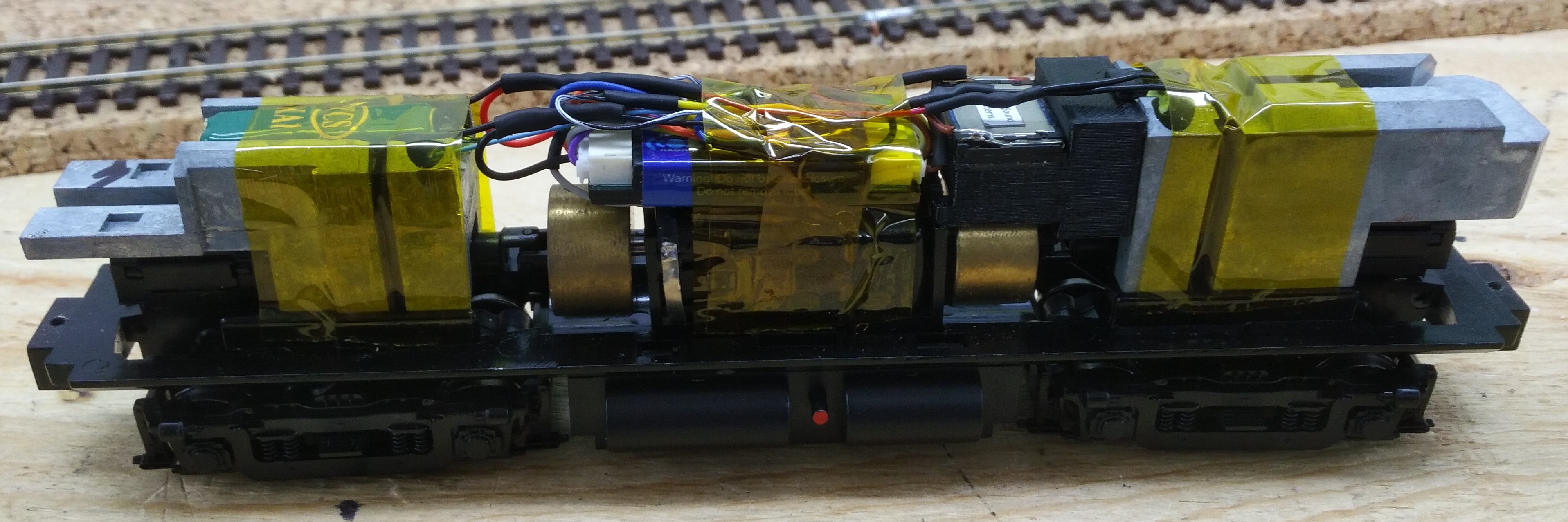

C424 After.1.jpg

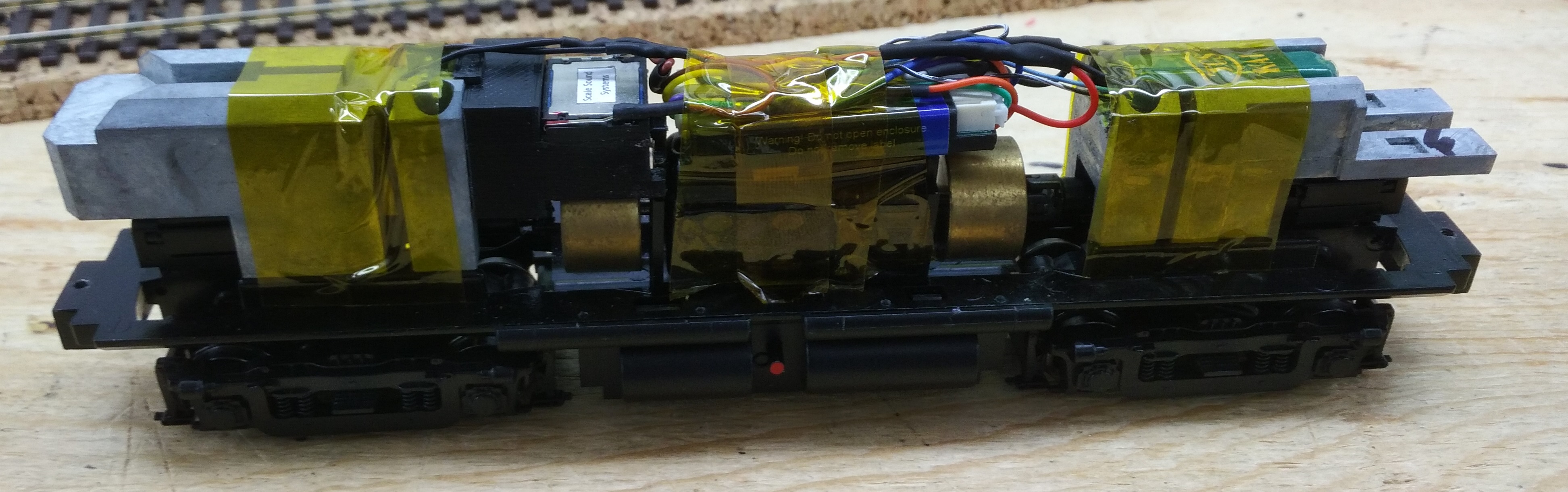

C424 After.2.jpg

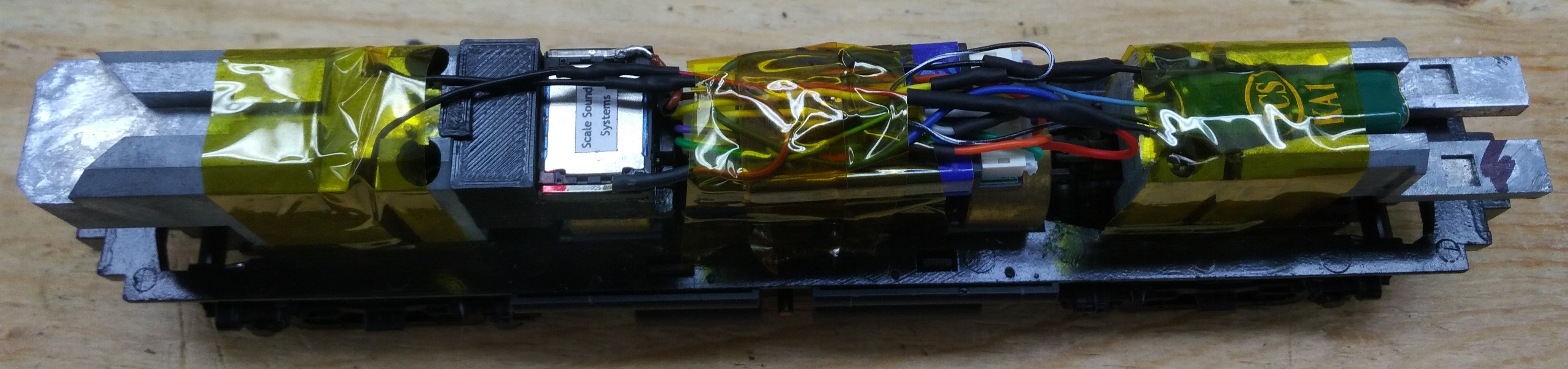

C424 After Top.jpg


Cheers,
Ian Lisakowski
Winnipeg, MB
Ian Lisakowski
Modelling CP Rail & VIA in the early 80's
Rabid Winnipeg Jets Fan - Go Jets Go!!

CPRail

  • Conductor
  • ****
  • Posts: 152
Re: Atlas Classic C424 (Canadian Version)
« Reply #1 on: February 09, 2020, 01:33:29 PM »
Forgot to mention that there are 2 ribs that need to be removed inside the roof of the shell, otherwise you won't get the shell on!

C424 Interior.jpg
Ian Lisakowski
Modelling CP Rail & VIA in the early 80's
Rabid Winnipeg Jets Fan - Go Jets Go!!

William Brillinger

  • Dispatcher (Admin)
  • Conductor
  • *****
  • Posts: 1115
    • Precision Design Co.
Re: Atlas Classic C424 (Canadian Version)
« Reply #2 on: February 09, 2020, 10:19:48 PM »
Nice install Ian, well done!
- Bill Brillinger, RPUG Admin

Modeling the BNML in HO Scale, owner of Precision Design Co., and RailPro Dealer.


CPRail

  • Conductor
  • ****
  • Posts: 152
Re: Atlas Classic C424 (Canadian Version)
« Reply #3 on: February 10, 2020, 12:45:55 PM »
Thanks Bill. Each one gets easier and easier!
Ian Lisakowski
Modelling CP Rail & VIA in the early 80's
Rabid Winnipeg Jets Fan - Go Jets Go!!
